6000 PSI Stainless Steel Needle Valve
- Investment casting
- Screwed-in bonnet
- Rising stem
- T handle operation
- Connecting threads ANSI B2.1, BS21 and DIN

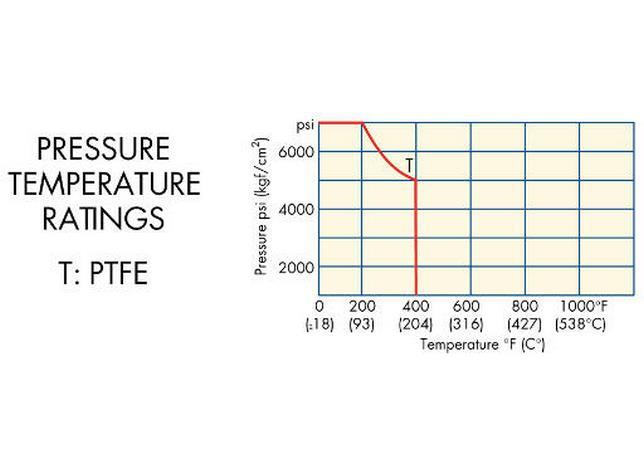

- Working pressure: 6000 lb/In²
- Test standard: API 598
Additional Information

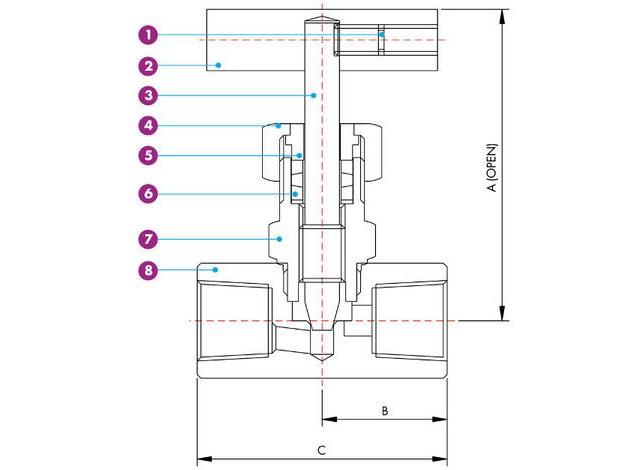

| NO. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| PART NAME | SET SCREW | HANDLE | STEM | GLAND NUT | GLAND | PACKING | BONNET | BODY |
| SPECIFICATION | SS304 | SS410 | SS316 | SS304 | SS304 | TEFLON | ASTM A351 Gr. CF8M | ASTM A351 Gr. CF8M |
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
