2 PC Standard Port, 2000/1500 WOG Ball Valve, Threaded
- Working Pressure: 1/4″ ~ 1″ 2000 PSI, 1 1/4″~2″ 1500 PSI
- Steam Rating: 150 PSI WSP
- Investment casting body & cap
- ME-PTFE Seal Kits: Replaces PTFE, RPTFE and FPA. Low deformation under load. Low permeation.
- Temperature Rating: -45.5 C (-50 F) to 246 C (475 F)
- Long cycle life
- Adjustable stem packing
- Blow-out proof stem
- Locking device
- Design specification: ANSI B16.34 CLASS 900
- Test standard: API 598
- Option: Seal weld cap to body
Additional Information

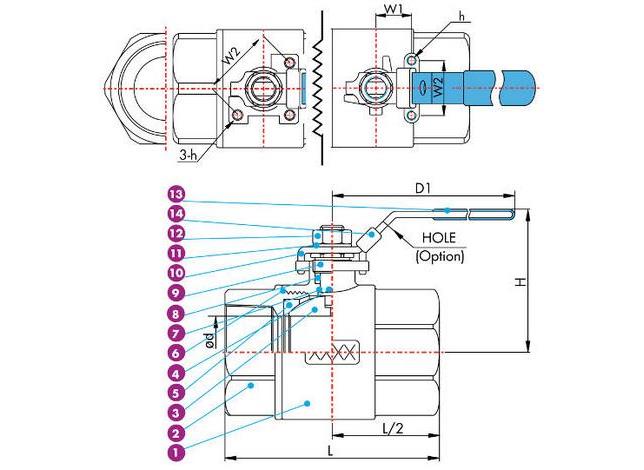

| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 |
| Part Name | Body | Cap | Ball | Stem | Seat | Gasket | Thrust Washer | Packing | Gland | Handle | Spring Washer | Handle Nut | Handle Sleeve | Locking Plate |
| Material | ASTM A351 Gr. CF8M | ASTM A351 Gr. CF8M | ASTM A351 Gr. CF8M | ASTM A276 Gr. 316 | ME-PTFE* | ME-PTFE* | ME-PTFE* | ME-PTFE* | SS304 | SS304 | SS304 | SS304 | Vinyl Grip | SS304 |
| Quantity | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
