1 PC Reduced Port 1000 WOG Ball Valve, Threaded

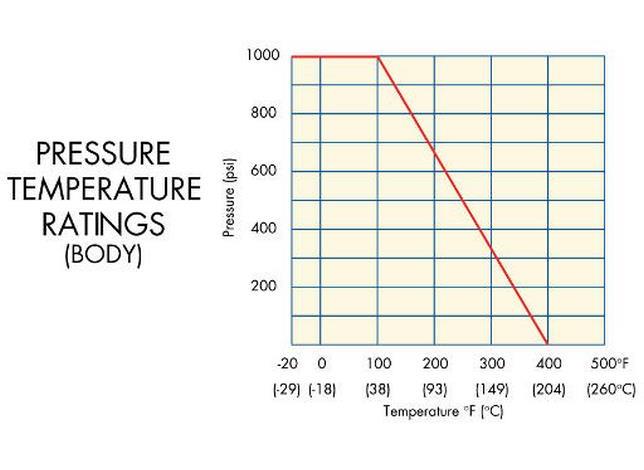

- Pressure Rating: 1000 PSI WOG (NON-SHOCK)
- Steam Rating: 125 PSI WSP
- Investment cast body
- Bottom-loaded, Blow-out-proof stem
- Adjustable stem packing
- Stainless Steel Handle with vinyl grip
- Locking device
Additional Information

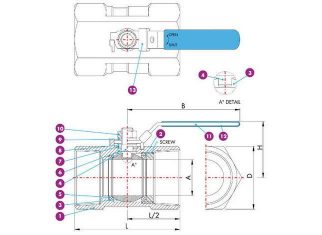

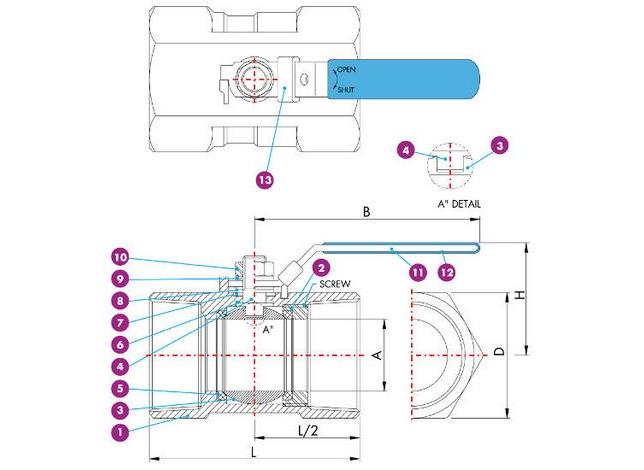

| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
| Part Name | Body | Cap | Ball | Stem | Seat | Thrust Washer | Gland Packing | Washer | Spring Washer | Stem Nut | Handle | Handle Sleeve | Locking Plate |
| Material | ASTM A351 Gr. CF8M | ASTM A351 Gr. CF8M | ASTM A351 Gr. CF8M | ASTM A276 Gr. 316 | PTFE | PTFE | PTFE | SS304 | SS304 | SS304 | SS304 | Vinyl Grip | SS304 |
| QTY | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 |
